Emergency Phone Tower Wind Load Certification

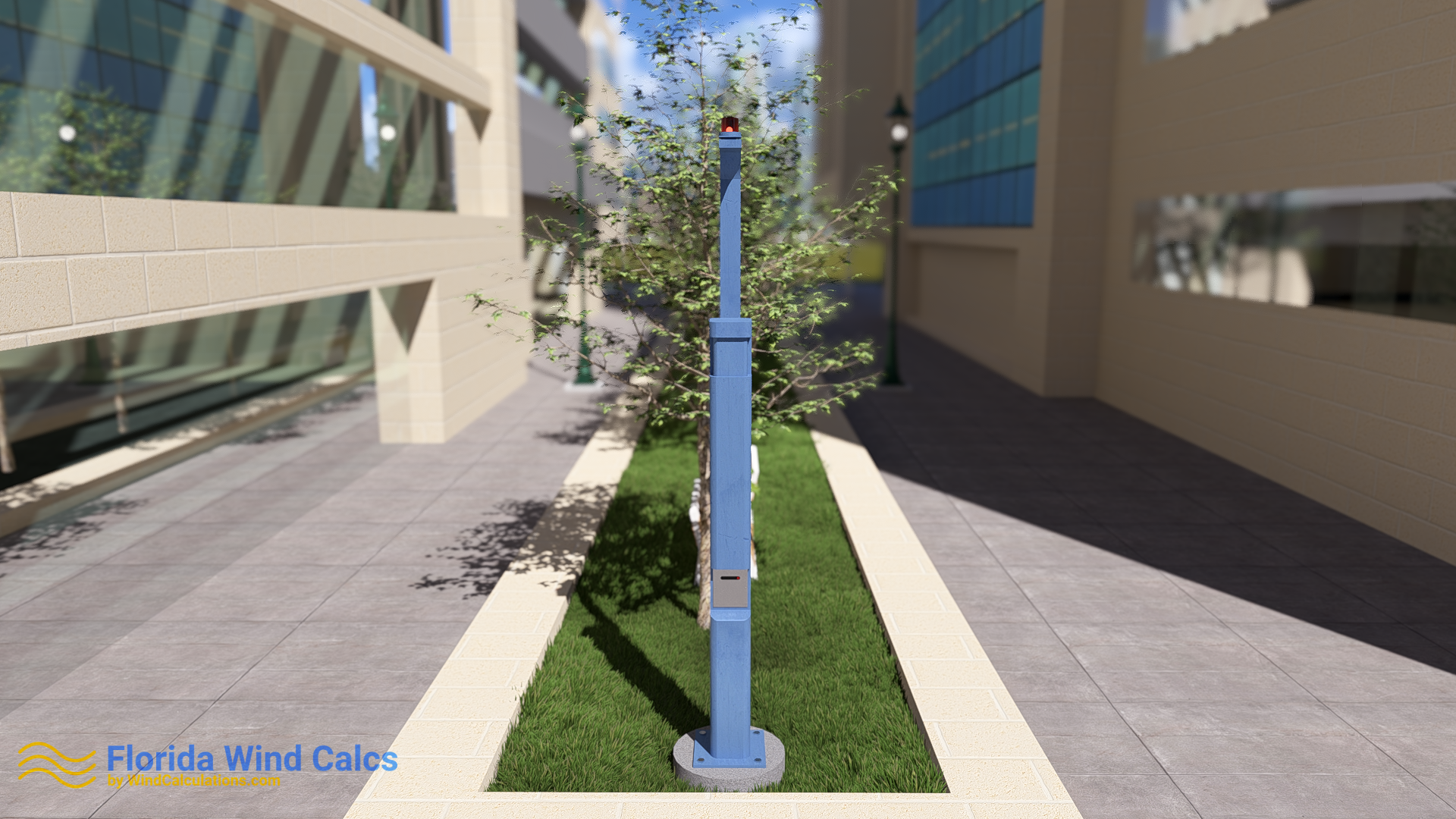

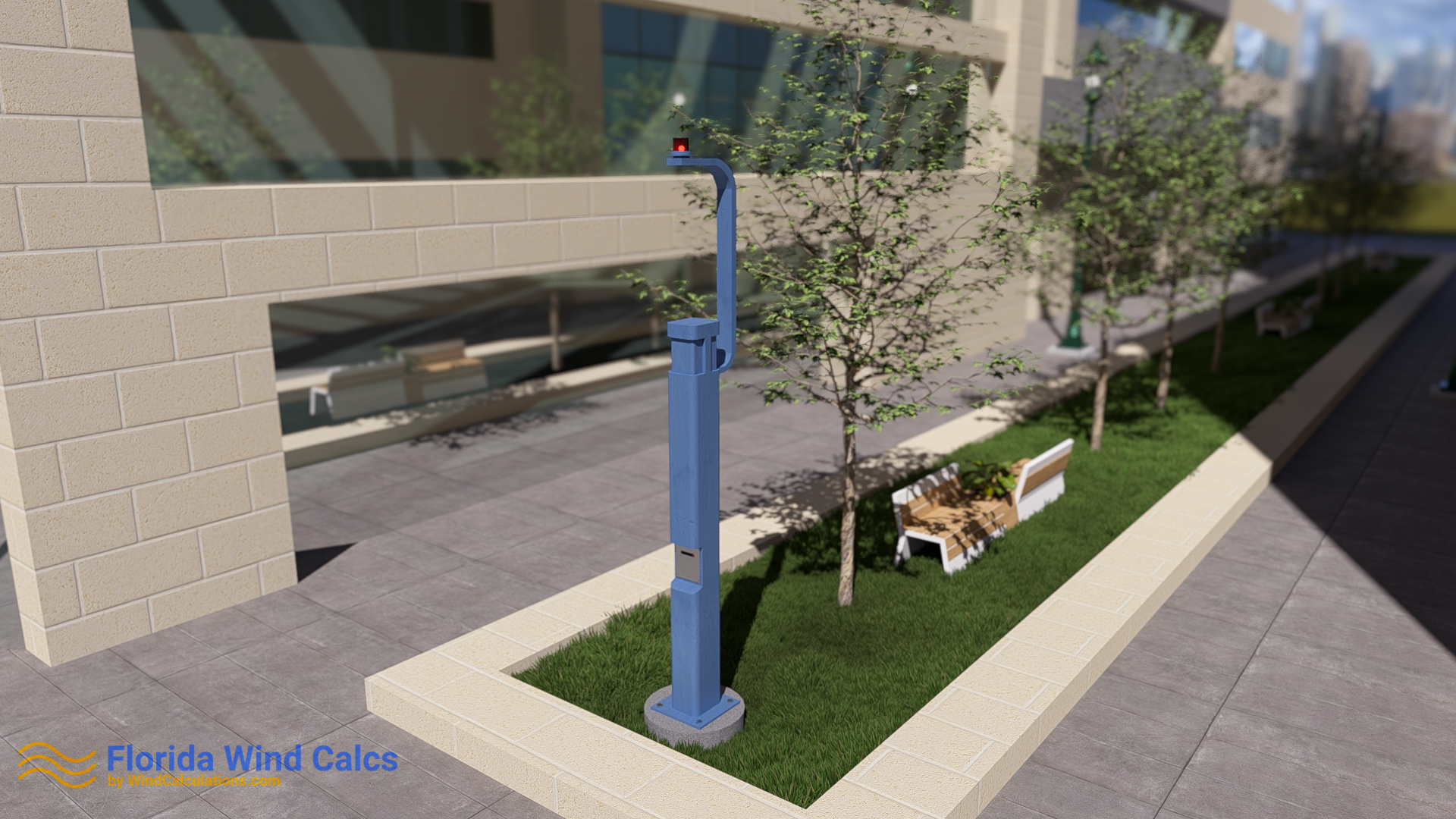

For an emergency phone tower, such as the Talk-A-Phone radius tower with CCTV arm, on a campus, parking structure or municipal site: wind certification and foundation design, stamped for the permit.
- Price
- $1,800
- Turnaround
- 3–5 business days
- Delivered as
- PE-sealed PDF
What you get
- A PE-stamped cover letter certifying compliance with the code adopted at the site (ASCE 7-22 or the edition it references)
- Wind load calculation report: hazard data, pressures, anchors, base plate and foundation design
- Structural general notes sheet (S0.0)

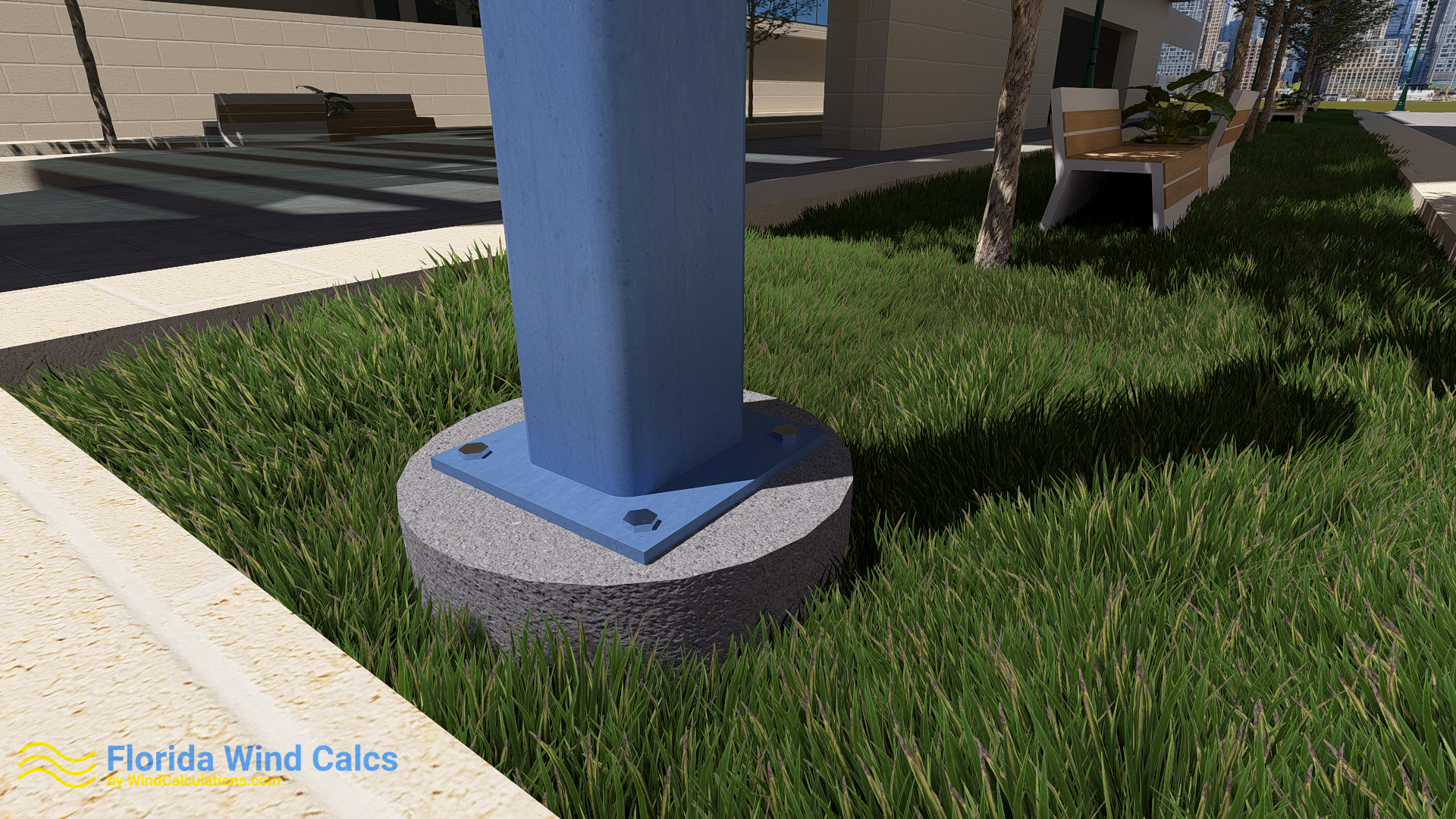

- Foundation plan and section details (S1.0)
- A permit-ready PDF package
What we need from you
- 1The project location
- 2The tower or pole: description and dimensions, every attachment (CCTV, light head, battery box, antenna), and the manufacturer cut sheet or a photo
- 3Soil information if you have it; otherwise we state the assumption
If anything is missing we ask before work starts. Pay the set price at the end of the request; a licensed engineer confirms the scope before any work begins.
Start the request · $1,800Covers
- Universities and schools
- Parking garages and lots
- Transit and medical centers
- Municipal security installations
Not this package
- Towers over 30 ft or guyed structures (quoted)
- Electrical and communications design
Specs
- Wind speed
- ASCE 7-22 hazard map for the site
- Risk category
- Per the facility; often III or IV for essential sites
- Exposure
- B, C or D, set by the engineer from the site
- Deliverables
- Letter, calc report, S0.0, S1.0
- Turnaround
- 3–5 business days
Questions
- Which towers do you cover?
- Talk-A-Phone ETP-MT/R OP4 radius towers with CCTV arms and similar models from other manufacturers. Send the cut sheet; if it is unusual we say so before you pay.
- Is the foundation site-specific?
- Yes. The foundation is designed for the stated soil assumption and the site wind; if you have a geotechnical report we use it.
Ready when you are.
Send the project details in about two minutes. A licensed engineer reviews them and tells you what happens next.
